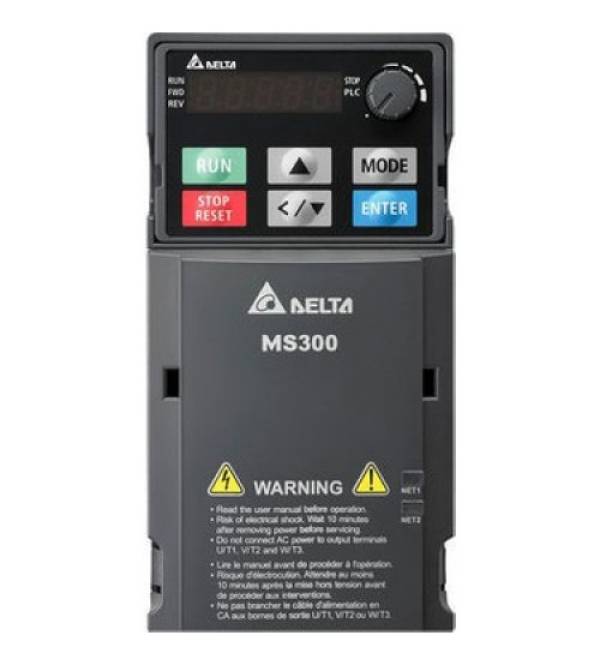

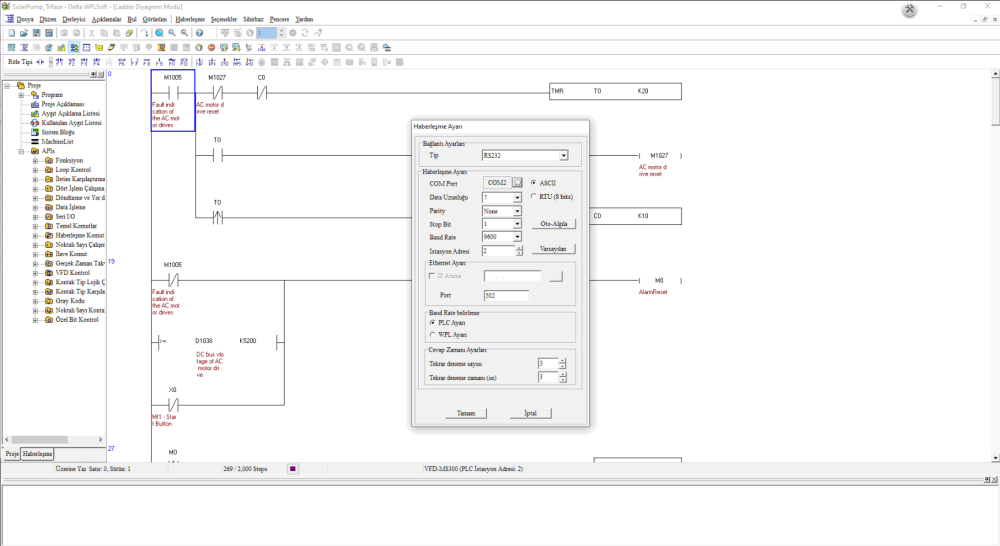

Back to top Share via Share via... Twitter LinkedIn Facebook WhatsAppSend via e-MailPrintPermalink × Table of Contents Remote Connection with Delta Driver (USB) Installing the Hardware Required Software Remote Connection Remote Connection with Delta Driver (USB) With the SMX-RNS02, you can remotely access Delta Drivers, as well as all other devices, without any settings. The hardware used in this example is; Simplinx SMX-RNS02 Delta Driver (MS300) USB Cable 24V Power Supply Installing the Hardware For detailed information, please refer to the technical documents of the respective devices! Make the power connections correctly. SMX-RNS02: 24V DC Delta Driver: 24V DC Connect SMX-RNS02 and Delta Driver to each other by using the USB Cable Provide internet to SMX-RNS02 device as you prefer Energize the power supply and Driver Required Software SX-Client (www.simplinx.net) Delta WPLSoft Remote Connection The connection information of the communication interface of Delta MS300 driver is as in the photo below. Establish a remote connection with your device. After the remote connection is established, the ethernet and USB devices connected to your device will be listed as shown in the photo below. Make sure that the Delta Driver link is visible. Open the Device Manager on your computer. Optimize the connection settings of the COM port. Open the Delta WPLSoft program. Create a new project or open your existing project. In the “Communication Settings” page, select the connection type as COM and enter the communication settings. Test your connection.
